Instrumental Analysis

Chem 336

Scanning UV-Visible Spectrophotometer

Under the Hood

Grating

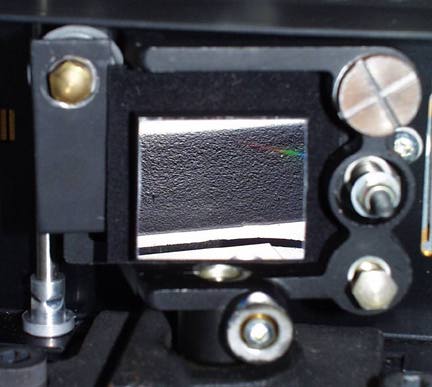

The Grating is a reflection grating which is 29 X 34 mm, blazed at 250 nm with 1200 lines/mm. This grating is positioned by a Czerny Truner mount controled by a screw drive mechanism below the optic bench.
