Diode-Array UV-Visible Spectrophotometer

Monochromator

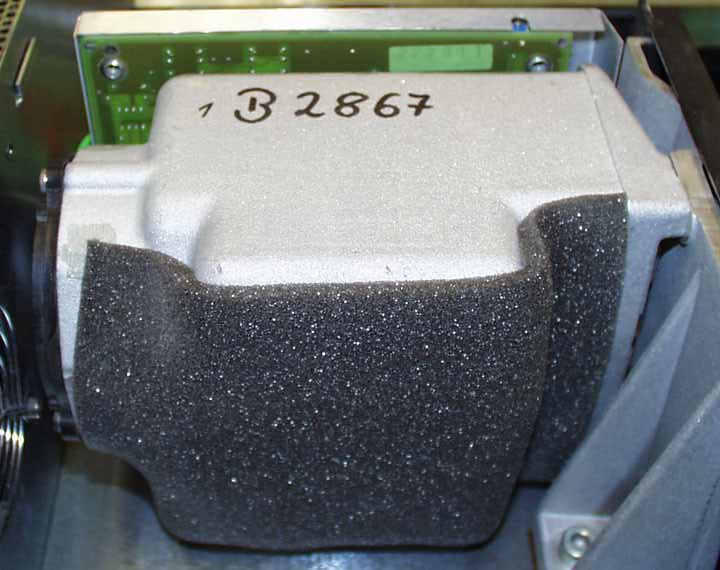

The monochromator is a completely sealed unit with the grating located at the left side and the diode array at the right side in the rear. The unit has no servicable parts inside, though the grating and diode array can be removed if necessary.
