Scanning UV-Visible Spectrophotometer

Under the Hood

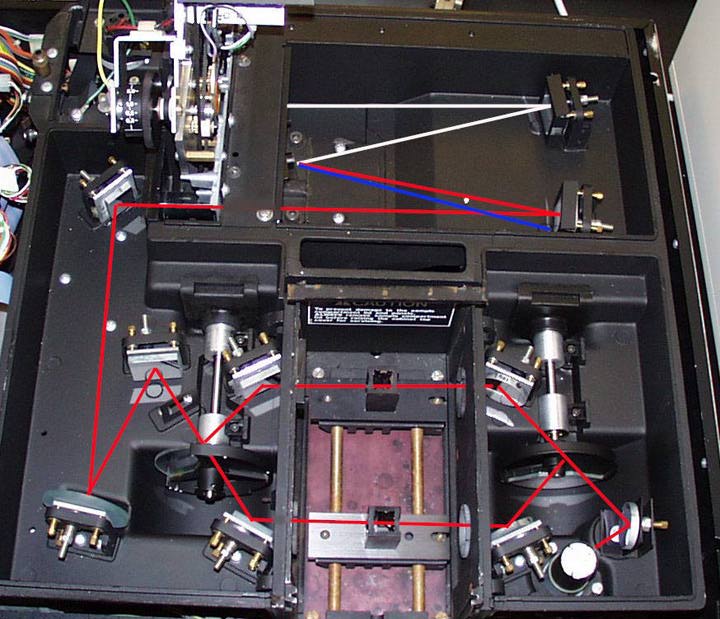

Light Path through Monochromator

The monochromator works by dispersing the light path, selecting a specific wavelenght and then passing the light through the sample or reference cell before striking the detector.
